Structure Steel Office Workspace Portal Frame Solution For Corporate Commercial Use Building

Certificazione
La CINA Qingdao Ruly Steel Engineering Co.,Ltd Certificazioni
La CINA Qingdao Ruly Steel Engineering Co.,Ltd Certificazioni
Rassegne del cliente
Per essere onesto, non ho una conoscenza di così con la struttura d'acciaio all'inizio, ma mi danno una proposta perfetta per aiutarmi a completare il mio progetto, il buon lavoro, l'acciaio Ruly

—— Mike Guioguio

Il termine di consegna è rapido e molto importante: la partita sempre inviata dei prodotti l'ordine. Se li fido di perché non sono stato deluso mai con loro.

—— Mae Cena

Questa cooperazione reciproca dura circa 4 anni e che deve ammettere che il servizio forniscono è sopra preveduto.

—— Terry Shepley

Sono ora online in chat

Structure Steel Office Workspace Portal Frame Solution For Corporate Commercial Use Building

Structure Steel Office Workspace Portal Frame Solution For Corporate Commercial Use Building
Structure Steel Office Workspace Portal Frame Solution For Corporate Commercial Use Building Structure Steel Office Workspace Portal Frame Solution For Corporate Commercial Use Building Structure Steel Office Workspace Portal Frame Solution For Corporate Commercial Use Building Structure Steel Office Workspace Portal Frame Solution For Corporate Commercial Use Building Structure Steel Office Workspace Portal Frame Solution For Corporate Commercial Use Building Structure Steel Office Workspace Portal Frame Solution For Corporate Commercial Use Building

Grande immagine :  Structure Steel Office Workspace Portal Frame Solution For Corporate Commercial Use Building

Dettagli:
Luogo di origine: Cina
Marca: Ruly Steel
Certificazione: CE, AISC, AWS-D1.1, SGS, BV, ISO
Numero di modello: Rulyz0003
Termini di pagamento e spedizione:
Quantità di ordine minimo: 200 metri quadrati
Prezzo: USD29-USD99 Per Square Meter
Imballaggi particolari: Come richiesta
Tempi di consegna: 30 giorni
Termini di pagamento: , L/C, T/T, Western Union
Capacità di alimentazione: 20000 metri quadrati al mese

Structure Steel Office Workspace Portal Frame Solution For Corporate Commercial Use Building

descrizione
Materiale in acciaio: Q235B, Q355B o richieste degli acquirenti, come: ASTM, BSEN, DIN, IPE, AISI, JIS Applicazione: Ufficio multi-piano, ufficio aziendale, edifici amministrativi, governo, istituzione educativa
Trattamento superficiale: Galvanizzato di pittura o hot imesco Ambito da lavoro: Progettazione, fabbricazione, installazione
Evidenziare:

Corporate Use Steel Portal Frame

,

Commercial Use Steel Portal Frame

,

Commercial Building Steel Portal Frame

Product Description

Our steel office buildings provide a practical and modern solution for companies that need a reliable space to work, meet, and grow. Designed with high-strength steel frames and durable wall and roof panels, they offer excellent protection from wind, rain, and snow while maintaining a professional appearance.

Prefabrication means the building components are manufactured off-site and assembled quickly, saving you valuable time and labor costs. This makes them ideal for businesses that require rapid expansion, temporary offices, or permanent facilities with minimal disruption to operations.

The result is an office building that combines speed of construction, long service life, and easy maintenance, allowing you to focus on running your business instead of managing construction delays.

Design Services

We offer end-to-end design support to help you create a workspace that matches your company’s operational needs and brand identity. Our engineers will consider factors such as floor space requirements, workflow efficiency, and environmental conditions to deliver a solution that works for you.

Structure Steel Office Workspace Portal Frame Solution For Corporate Commercial Use Building 0

Available design features include:

  • Open-plan office layouts for collaborative teams

  • Mezzanine floors to increase usable space without expanding the footprint

  • Private office rooms and meeting areas

  • Energy-efficient insulated panels to reduce heating and cooling costs

  • Modern exterior cladding options to reflect a professional corporate image

Our goal is to ensure your steel office building is both functional and future-proof.

Item name Specification Material Parameter Technical Treatment
Column H shape,Box,steel pipe,Hot-rolled sheet Q235B,Q355B Paint or Hot-dip galvanized
Beam H shape,steel Truss,Hot-rolled sheet Q235B,Q355B Paint or Hot-dip galvanized
Bracing Tie rod,Casing pipe,Angle steel Q235B,Q355B
Purling C / Z shape, purling Thickness:1.8mm~3.0mm Q235B,Q355B Hot-dip galvanized
Wall & roof panel EPS / PU / PIR / Glass wool / Rock wool Sandwich panel or Single plate. Steel T=0.426~0.8mm,insulation T=50~150mm Alu-zinc 150g, Fluorocarbon paint
Door Sliding or rolling door Steel or Aluminum sheet,T=1.0~1.5mm Paint or Hot-dip galvanized
Window Alloy-Glass,Aluminium alloy-shutter, Louvers T=1.0~2.0mm Alloy
Skylighting panel FRP, T=1.5mm or T=1.8mm Coefficient of thermal expansion:2.2x10-5/cm/cm/℃ Light transmittance 85%
Ventilator Turbine ventilator, and electric type Steel,stainless steel,PC Paint or Hot-dip galvanized,304
Gutter Galvanized or stainless steel plate T=2.0mm Hot-dip galvanized,304
Bolt Ordinary, high strength 10.9S,4.8s Hot-dip galvanized
Anchor bolt Steel rod M24,M27 M30 Q235B

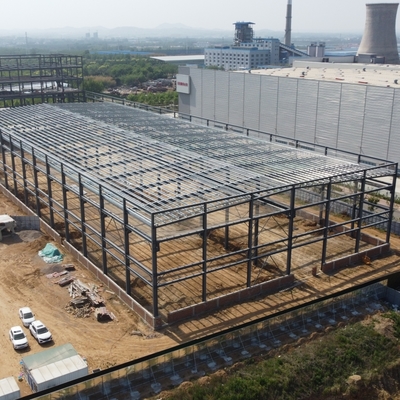

Processing & Inspection

Each steel office building is produced using precise fabrication techniques to guarantee strength and accuracy. The process includes:

  • Cutting and welding of structural components

  • Application of anti-corrosion coatings for extended durability

  • Fabrication of insulated roof and wall panels

Structure Steel Office Workspace Portal Frame Solution For Corporate Commercial Use Building 1

Before leaving the factory, every piece is checked for dimensional accuracy, surface quality, and structural integrity. We also welcome third-party inspections to provide you with complete confidence in the quality of your building materials.

This careful approach ensures that when the building reaches your site, all components are ready for smooth assembly.

Structure Steel Office Workspace Portal Frame Solution For Corporate Commercial Use Building 2
Packaging & Shipping

Our prefabricated office building components are packed securely to prevent any damage in transit. Modular packaging ensures efficient loading, shipping, and unloading, helping you save on logistics costs.

We offer global shipping solutions and can arrange door-to-door delivery if needed. Detailed assembly manuals and drawings are included with every order, and on-site installation guidance can be provided for complex projects.

Structure Steel Office Workspace Portal Frame Solution For Corporate Commercial Use Building 3


FAQ

1.How fast can a steel office building be assembled?
Most projects can be completed in just a few weeks, depending on size and site conditions, significantly faster than brick-and-mortar construction.

2.Can I request a unique layout?
Absolutely. We offer fully customized solutions to match your operational requirements, whether you need open space, individual rooms, or a mix of both.

3.What is the expected lifespan?
With proper care, a steel office building can last for decades. The galvanized coating and protective paintwork help prevent corrosion and extend service life.

4.Is it possible to expand the office building later?
Yes, the modular design allows for future expansion without major disruption. Additional bays or floors can be added as your business grows.

5.Do you provide support after delivery?
Yes, we offer after-sales service, including technical support during installation and consultation for future modifications or extensions.

Structure Steel Office Workspace Portal Frame Solution For Corporate Commercial Use Building 4
